• Zonda

    It´s full-blooded racing. You are out there to conquer the
    international racetracks with no room for compromises. You
    need a partner who has answers to any of your Grand Prix
    questions. ZONDA is the sharpest weapon in your wardrobe.
    Don’t compromise! Grand Prix calls for cutting-edge design.

Different layouts

  • X-CUT
  • TRIOPT
  • EPEX
  • X-CUT
    A cross-cut sail (x-cut) consists of a number of horizontal panels parallel to each other and perpendicular to the leech. This is a very cost-effective way of producing a sail, making it affordable and long-lasting. Being the first sail-design on the market, the x-cut sail has a long and proven track-record.
    Cross-cut sails are typically made from a woven polyester cloth with straight fill yarns that are stronger than the warp yarns. The strong fill yarns are aligned with the load bearing direction of the sail resulting in a very durable sail.
  • TRIOPT
    Trioptimal layout is also referred to as radial, since the panels are radial typically oriented towards the corners of the sail resulting in a triangular shape. This layout distributes the forces the sail is exposed to optimally and helps maintain the shape of the sail. The panels that make up the radial layout are carefully arranged to follow the load pattern, ensuring a strong and stable sail.
    Upwind sails in a trioptimal layout are typically made from a laminate cloth, that is a sandwich cloth constructed of more layers. However, you will find a few trioptimal designs in a woven polyester cloth, and most nylon downwind sails are designed in a trioptimal cut.
  • EPEX
    The unique and patented EPEX membrane technology is the flagship of Elvstrøm Sails. A 100 % custom design where every single yarn is placed according to a load path design, computer calculated to the individual sailing preference. This enables the absolute optimal distribution of fibers over the entire sail resulting in an outstanding shape stability and performance.
    A broad range of materials and fibers are available to meet every need. The components are bonded under extreme and constant vacuum that evacuates all air, holds the membrane in place, and compresses the membrane components.

Explore our sails

What kind of sail are you looking for?
What layout are you interested in?
See different material combinations

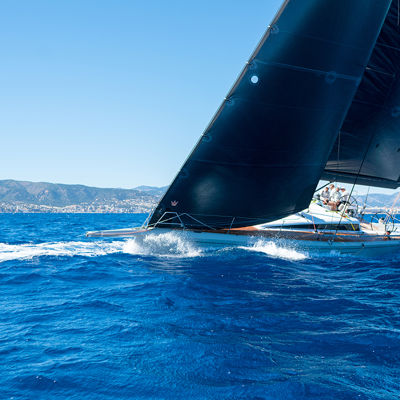

Racing Main Sail - GPR Black, Carbon/Technora

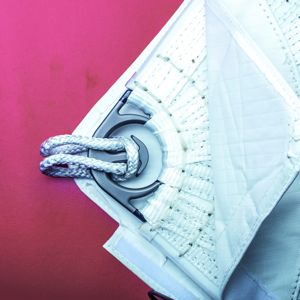

Light, extreme shape stability and custom details to match your racing boat and rigging. This mainsail will be 100% custom built based on thorough discussions between you and our sales and design team. Custom luff fittings, halyard locks, leech roach optimized to rigging and rules; give us your demands and we will find the best solution.

Material

GPR Black is an all-black film/film membrane, very light and racing oriented. The Carbon / Technora fiber combination is an optimal solution in terms of shape and performance.



Performance - Durability - Price

Performance, durability and price indicators are illustrated for each material combination on a scale from 1-10, 10 being the highest.





Other Mainsails

If the above product example is not what you are looking for, check out all the other mainsails in this layout in our Zonda, Grand Prix segment.

  • Conventional Main - short battens

  • Conventional Main - full battens

  • Fat Head Main
